We combined the ability of two lasers in the F1 Ultra: a fiber laser for its exceptional metal engraving performance and a blue diode laser for engraving the most of the common
MetalFab lets me make 1,000+ tiny lure parts in-house, no more spending $250K on outsourcing. A profitable game-changer!
Almost no learning curve, totally worth it. The cuts and welds are so clean they're nearly perfect, slashing my post-processing work.

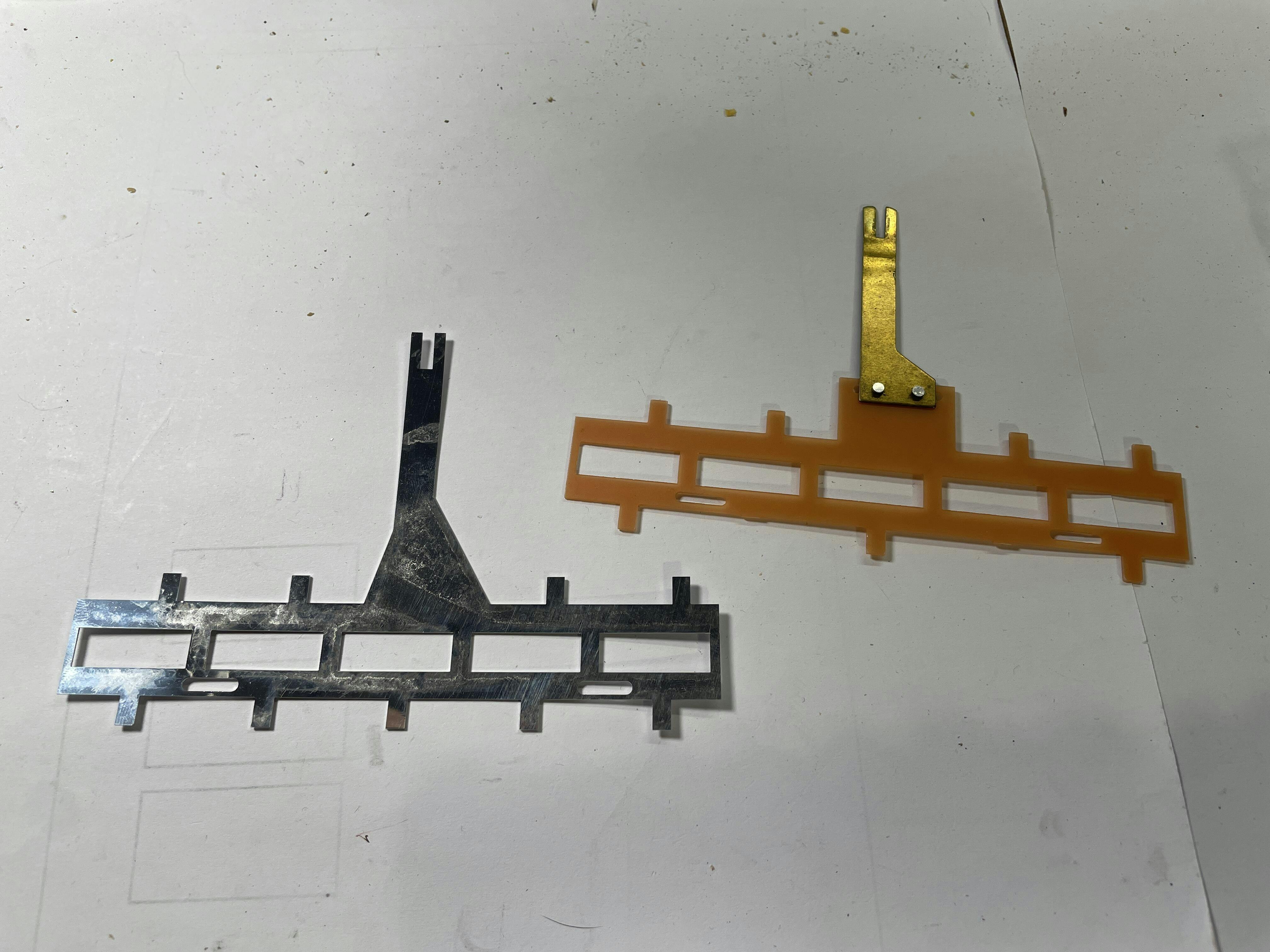

Waiting on suppliers for jigs killed our workflow & budget. Now, we take prototypes from CAD to finish in-house, reducing time from weeks to hours.
With over 40 years in welding, this is by far the easiest welder I have ever used. Its speed and accuracy slash project times, reduce labor costs and boost my profits.
By bringing cutting in-house, I've slashed my costs by 35%. The camera lets me use every inch of my material and scrap. That one feature alone is enough to pay for the machine.
Flexible Ways to Invest in Your Growth

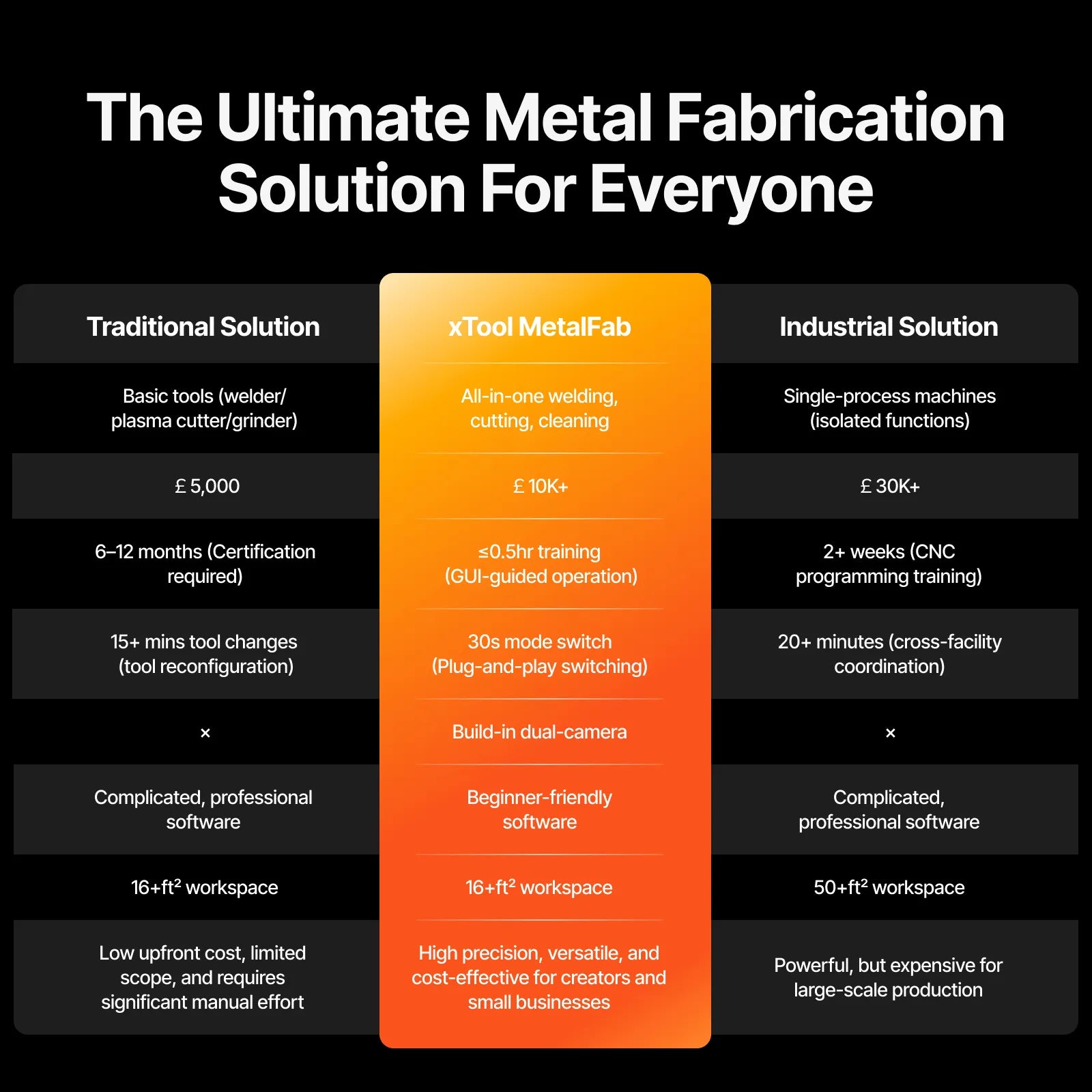

Why Settle? See How xTool MetalFab Outperform Others
In the Box
FAQ

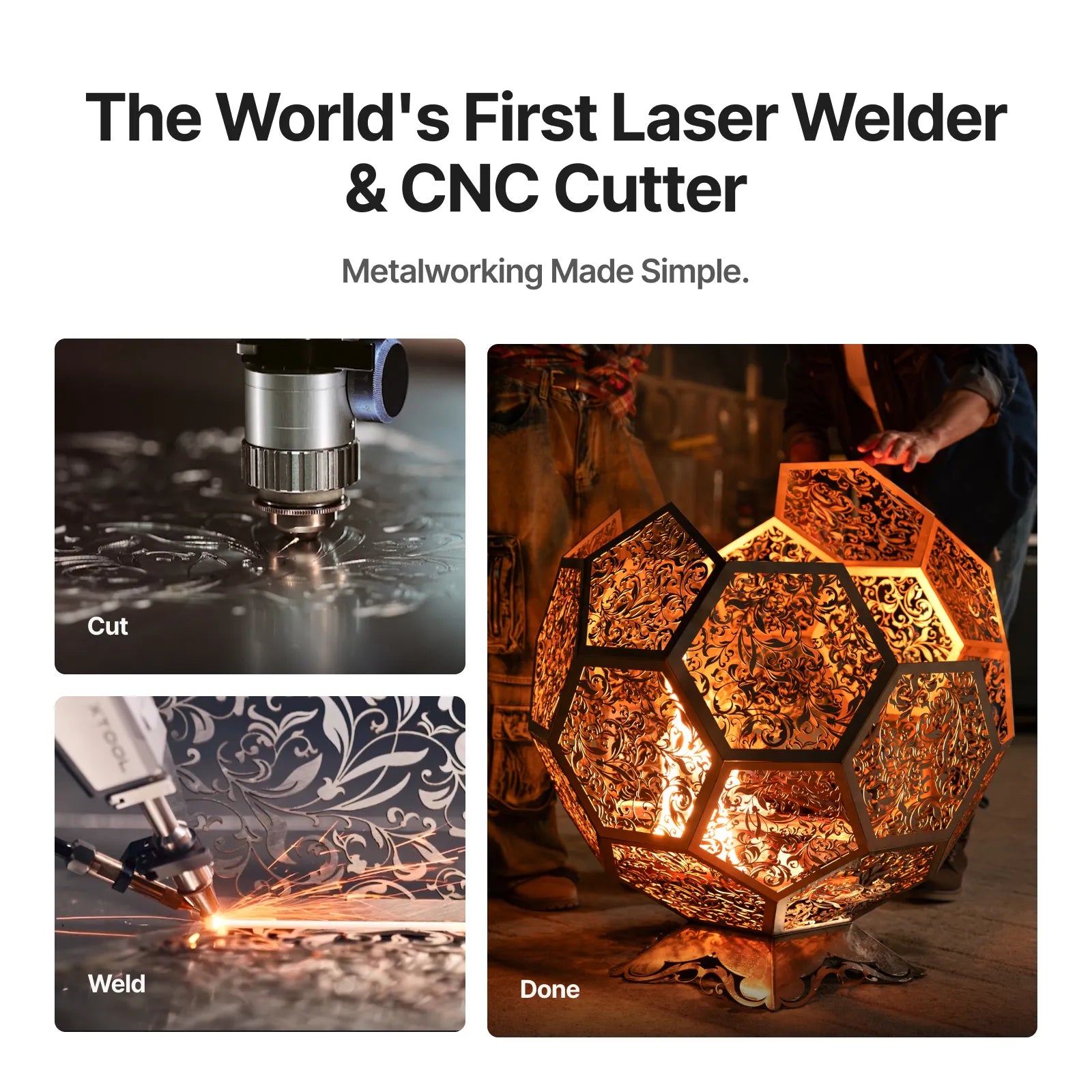

xTool MetalFab can cut/stainless steel, aluminum, brass, carbon steel, galvanized sheet, titanium, nickel alloy, magnesium.
Welding and cutting capabilities:

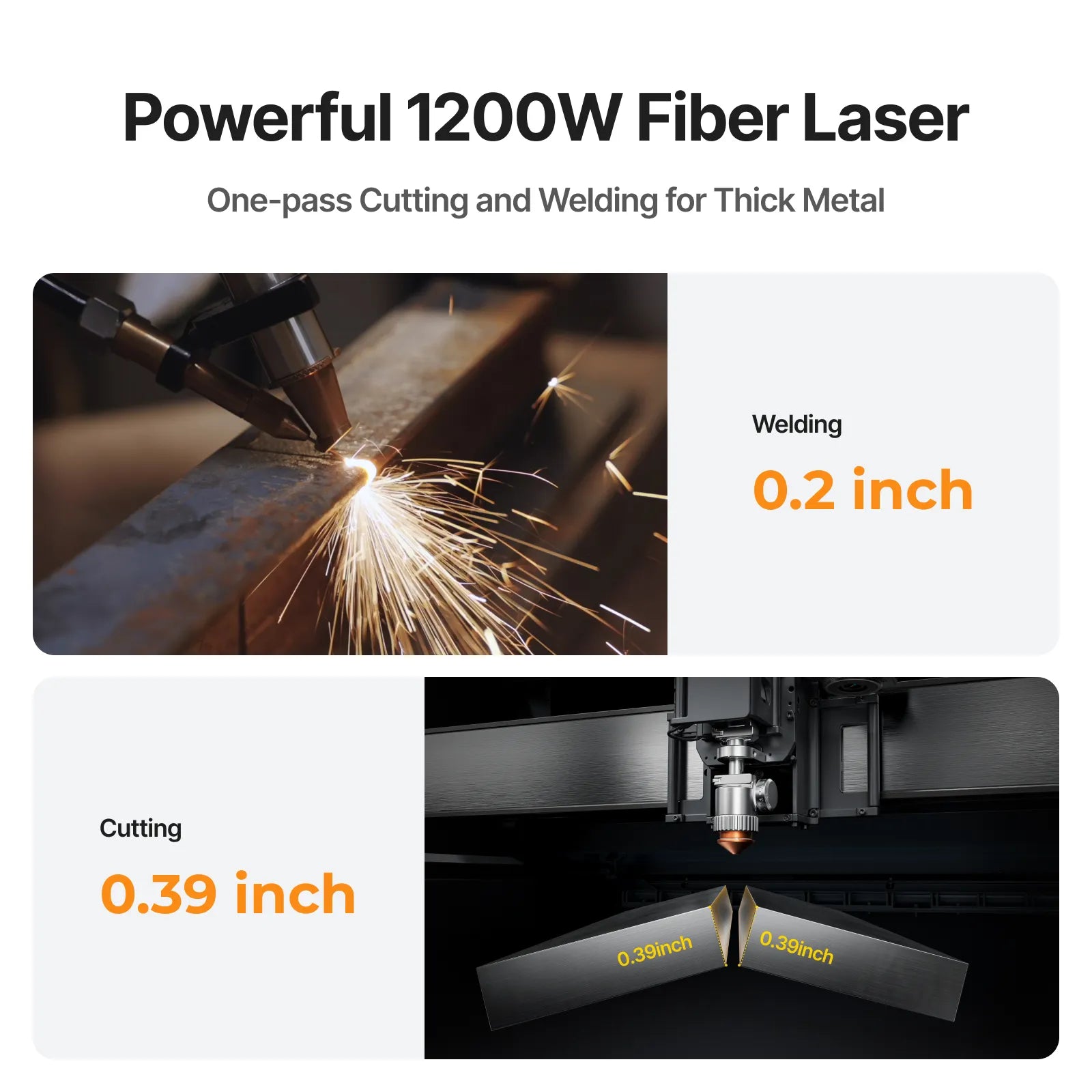

- The 1200W welder can weld up to 5mm stainless steel/carbon steel, while the 800W model handles up to 4mm.
- The 1200W welder can cut (handheld cutting) up to 5mm stainless steel/carbon steel, while the 800W model handles up to 3mm.
- When paired with a CNC cutting platform:
Design differences:
- The 1200W welder includes a free wire feeder, while the 800W model has a built-in wire feeding mechanism and is lighter in weight.
- Nozzle: First, we recommend using the double-layer nozzle set (add-on): For carbon steel <8mm, use the D1.0 nozzle; for carbon steel ≥8mm, use the D1.2 nozzle.
- Gas: We recommend using 99.99% oxygen at 0.05-0.06 MPa (for 1200w version) for cutting thick carbon steel. Do not use air, nitrogen, or argon, as they will lead to a lot of dross.
- Pattern: We recommend avoiding intricate designs when cutting thick metal. The minimum gap of the cutting pattern should not be smaller than the metal thickness. For 10mm steel, circles and rectangles can achieve the best results.
Welding: Nitrogen or argon gas with purity above 99.99% is suitable for most metals. The required welding pressure ranges from 0.1–0.2 MPa, with a gas flow rate of 15–30 L/min (argon is required for welding titanium alloys).
Cutting: Compressed air, nitrogen/argon (purity >99.99%), or oxygen are commonly used as shielding gases.

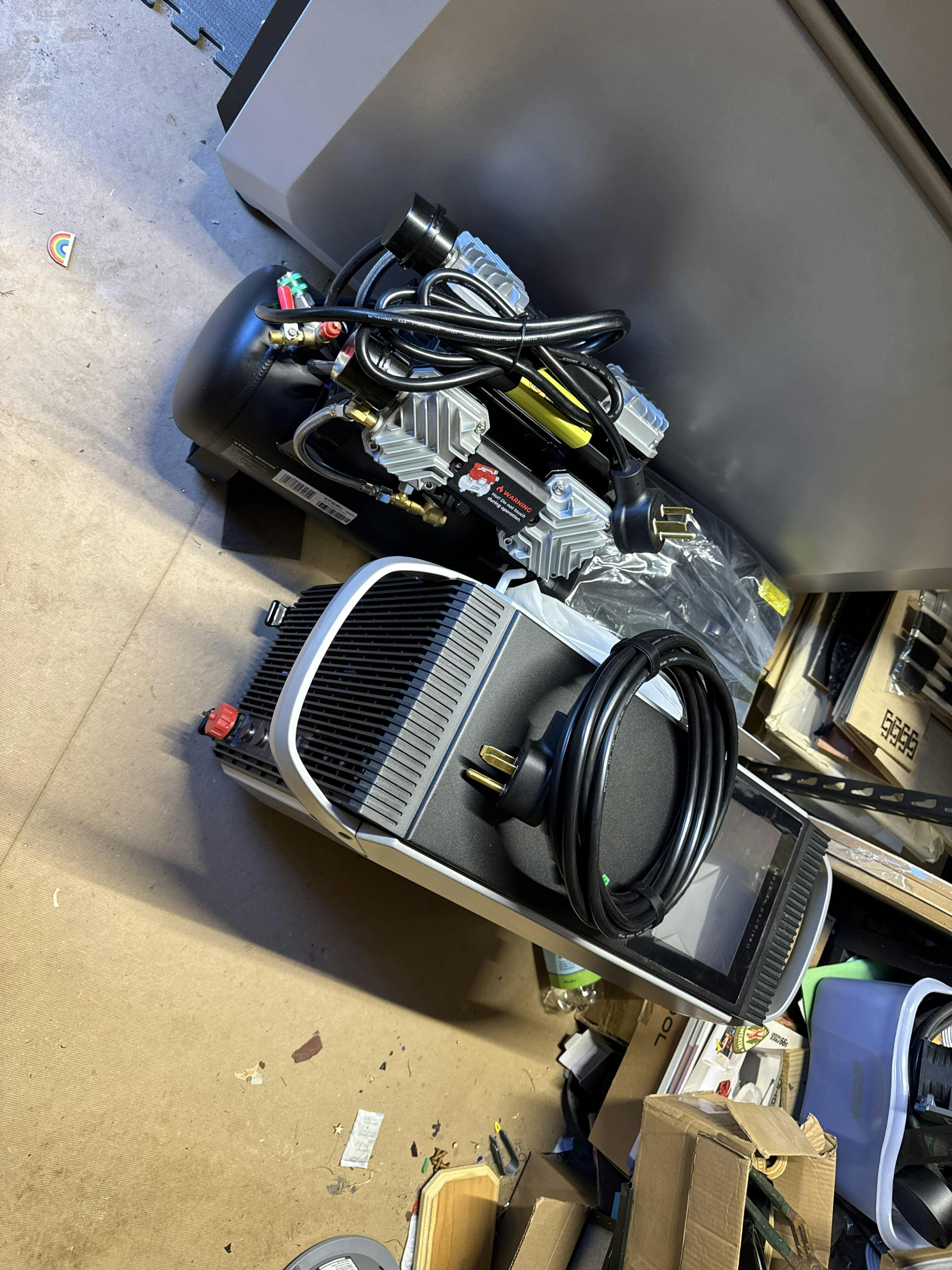

- xTool air compressor and air dryer provide stable compressed air, enabling burr-free cuts at 0.6 MPa for 4mm stainless steel, 4mm aluminum, 3mm brass, 1mm carbon steel, and galvanized steel (1200W laser) when paired with xTool SaveGas™ Nozzle. This setup significantly reduces costs compared to gas cylinders.
- Nitrogen/argon (at 1.2 MPa) can achieve burr-free cuts for the same materials (1200W).
- Oxygen is primarily used for cutting carbon steel and galvanized steel above 1mm thick. With a dual-layer nozzle and focal extension tube at 0.05–0.06 MPa, it can cut up to 10mm carbon steel/galvanized steel (1200W).
Cleaning: Compressed air is sufficient, but nitrogen or argon is recommended for brighter, oxidation-free results.
Yes, xTool MetalFab supports engraving on stainless steel, galvanized steel, titanium, and coated metals (e.g., anodized aluminum). It supports vector engraving, vector filling, and bitmap filling. Just use XCS for one-click parameter setup!
Note: To protect the laser, avoid engraving on high-reflectivity metals like copper.
The camera-driven workflow will significantly enhance your metalwork efficiency and minimize material waste.
xTool MetalFab integrates dual high-definition cameras for intelligent metal processing-advantages that products without cameras cannot match:

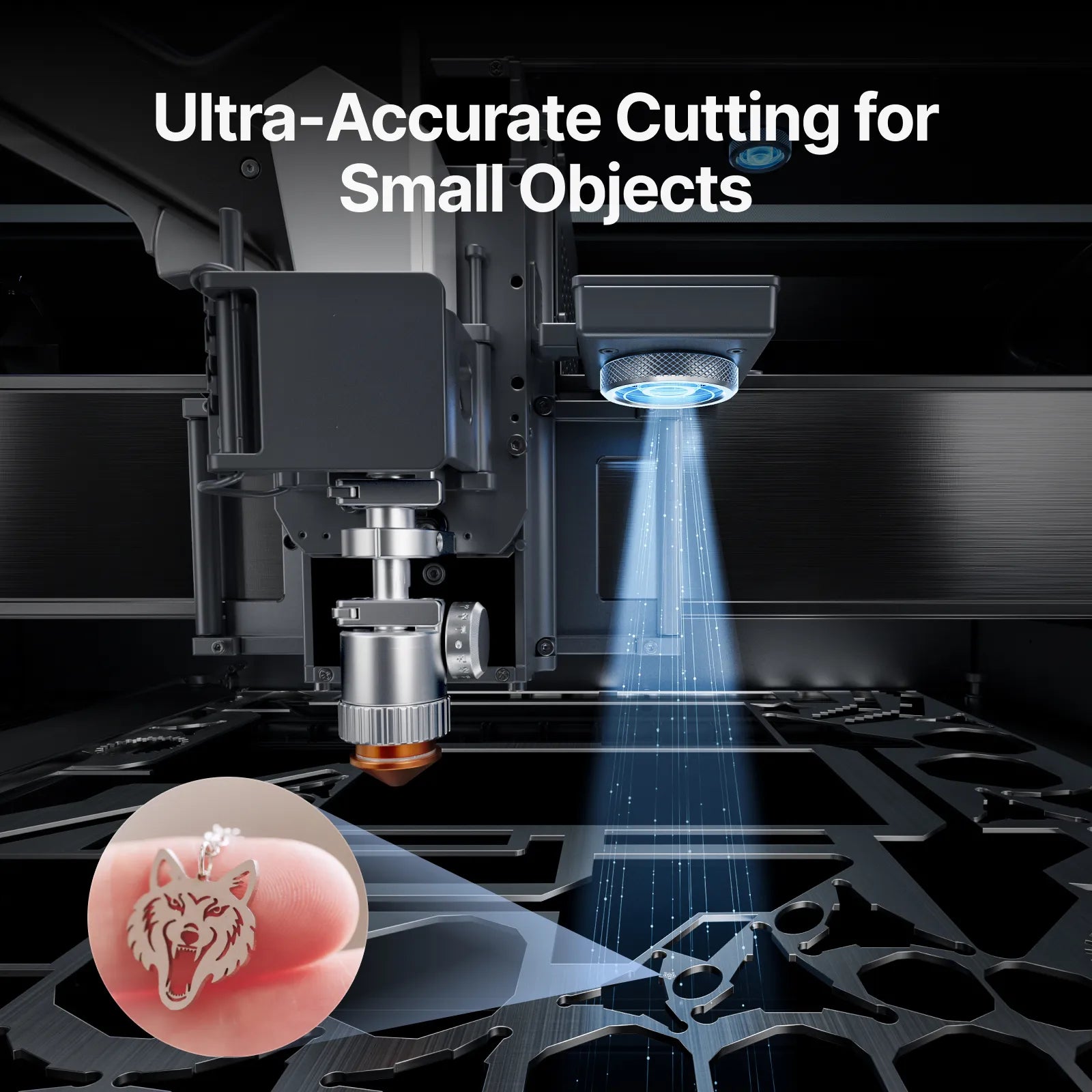

The 16MP Panoramic camera captures full-bed imaging for precise positioning and enables Smart Nesting function with up to 98.7% material use. The close-range camera enables micron-level precision for secondary/fine processing through localized high-res imaging.

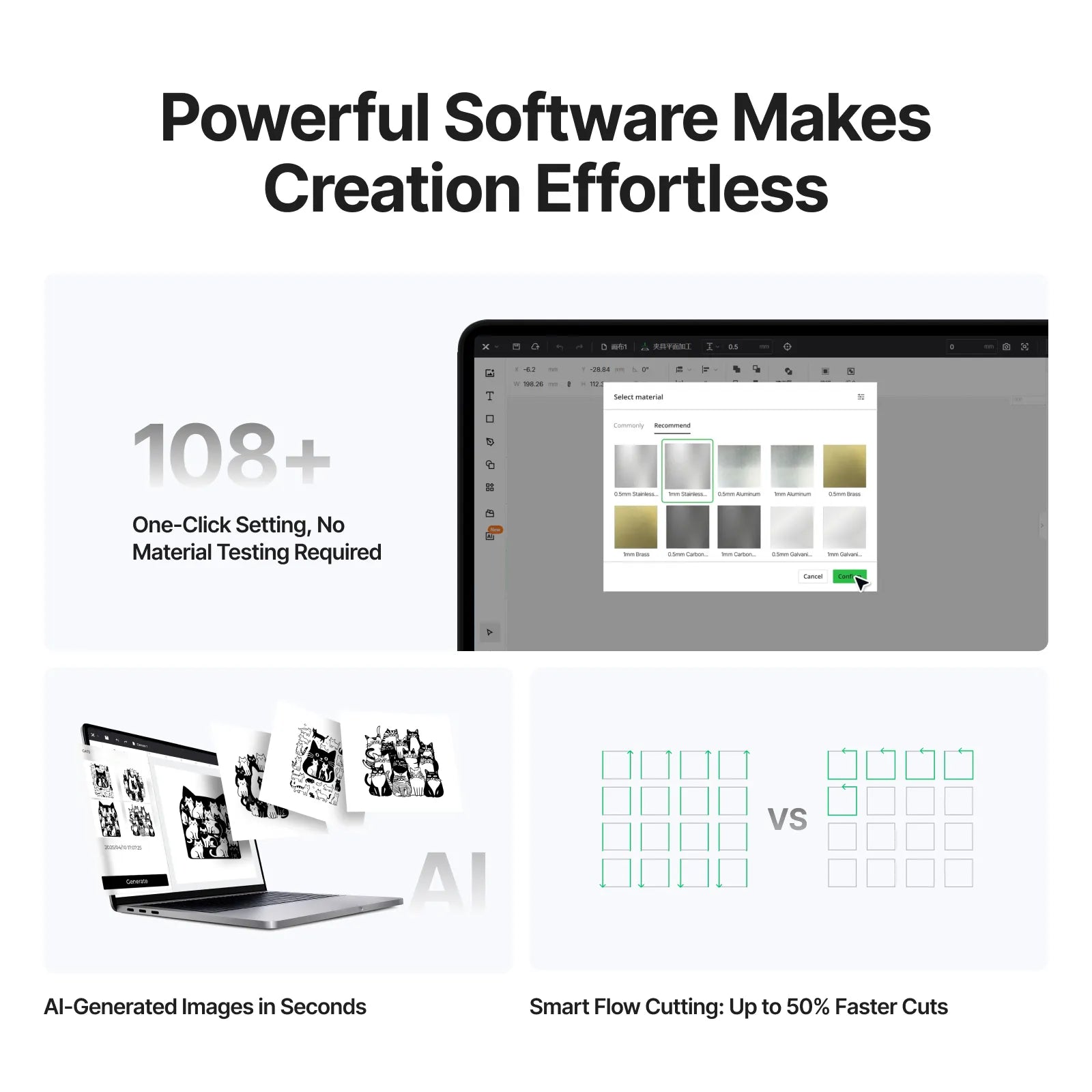

xTool MetalFab operates on the XCSSoftware, designed for intuitive control and streamlined workflows:
It features the Material EasySet Library with100+ pre-optimized parameters for 30+ materials. You only need to select the material you want to cut, and all parameters can be applied with a single click. It also supports Auto Lead-in Lines, Automatic Path Optimization, which significantly improves cutting efficiency.
We have designed xTool MetalFab to ensure a smooth and simple user experience, so you don’t need to worry about lacking experience—you can get started in just five minutes!

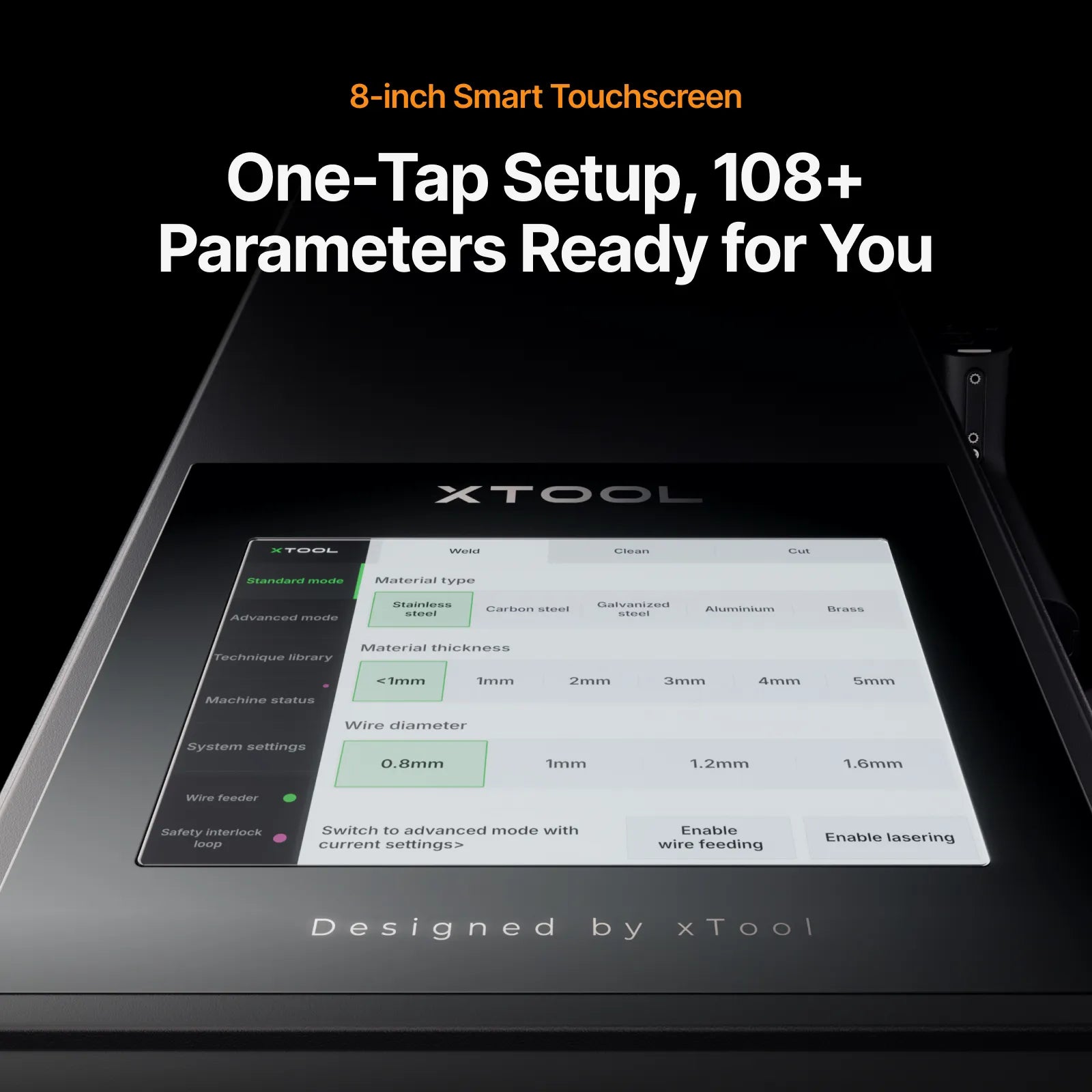

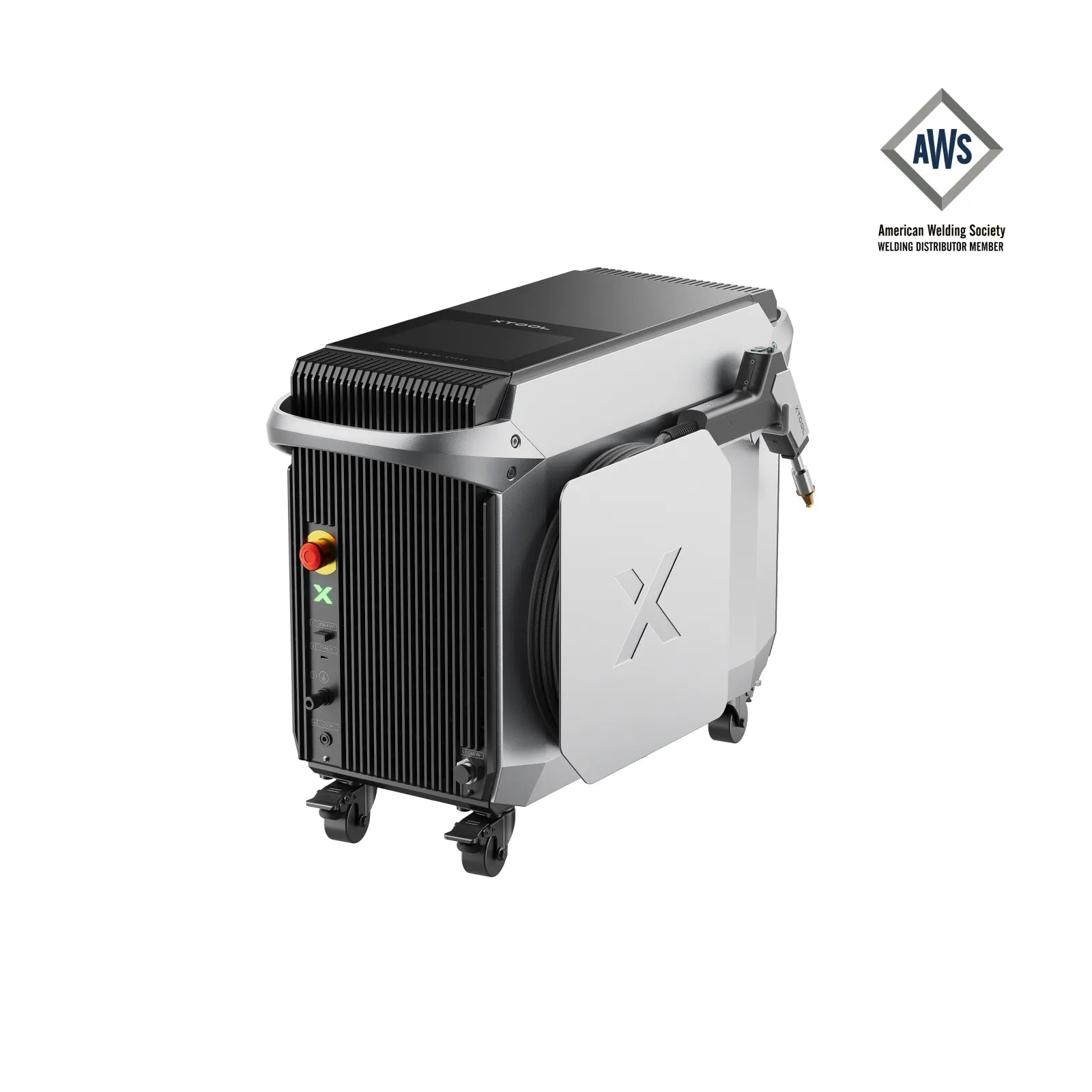

It features the 550g ultra-light integrated welding gun which enables a 5-second quick-release. The 8-Inch Smart Touchscreen has 108+ built-in parameters for one-click use.
xTool MetalFab can weld up to 5mm stainless steel or carbon steel, and we have passed SGS welding quality tests, so you can rest assured about its performance and reliability!
Yes, we are building a global localized service network, with established local service teams in the U.S. and Europe. You can access:
- 24/7 online support (via email, live chat, or phone).
- 1-on-1 dedicated warranty assistance.
- Demo room reservations for in-person machine testing and material trials.
You can access the after-sales policy, shipping policy, warranty policy via the link.
The xTool MetalFab laser welder can operate with a voltage of 200-240V, running at full power with approximately 4200W. The maximum current is 21A. It is recommended that users connect it to an independent circuit rated at 220V-21A or higher.
For the US, we provide a NEMA6-50p or NEMA6-30p plug. For other regions, we provide power cables, and an electrician is required to install the appropriate circuit.
