xTool SafetyPro™ IF2
xTool SafetyPro™ IF2
Six Reasons to Jump In
Six Reasons to Jump In

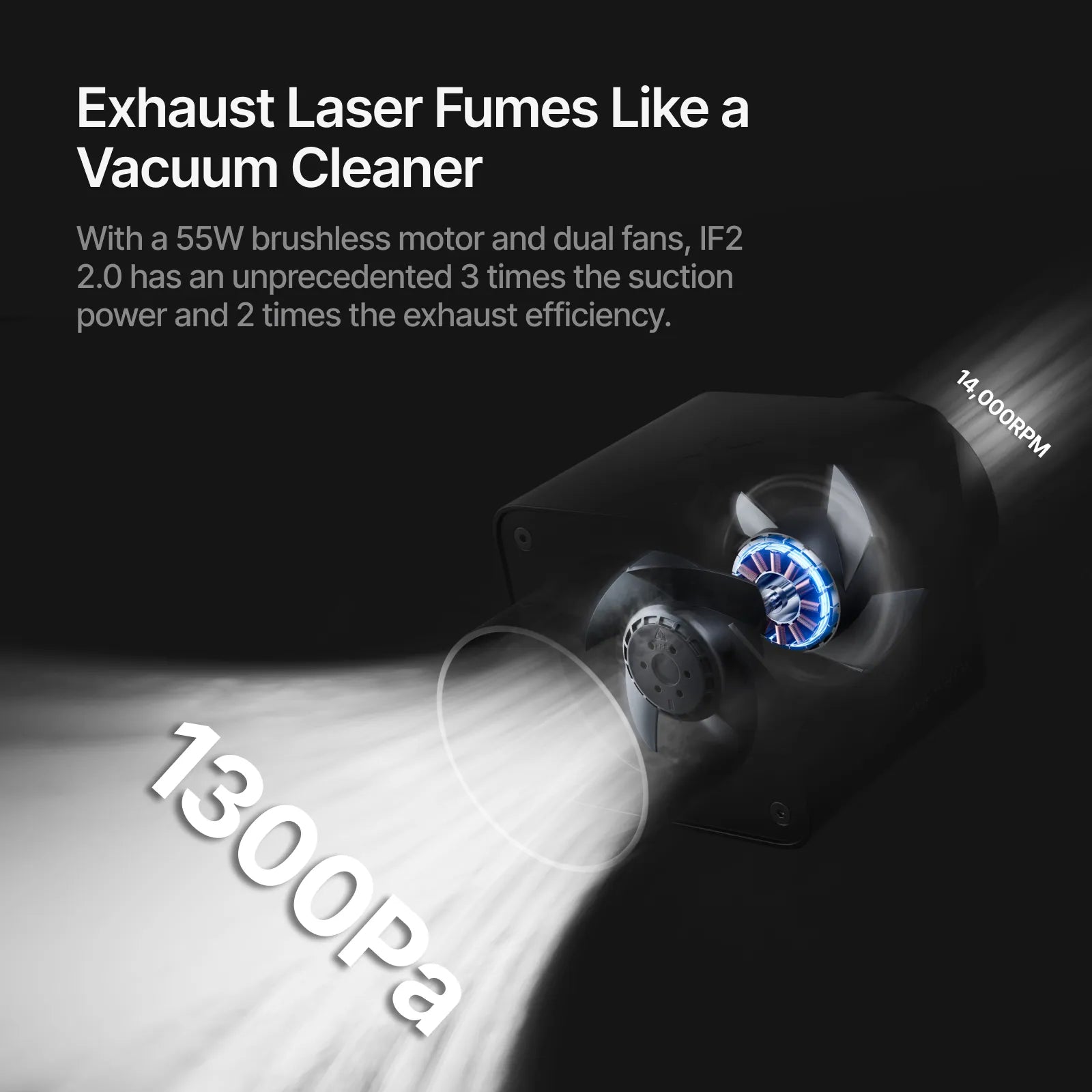

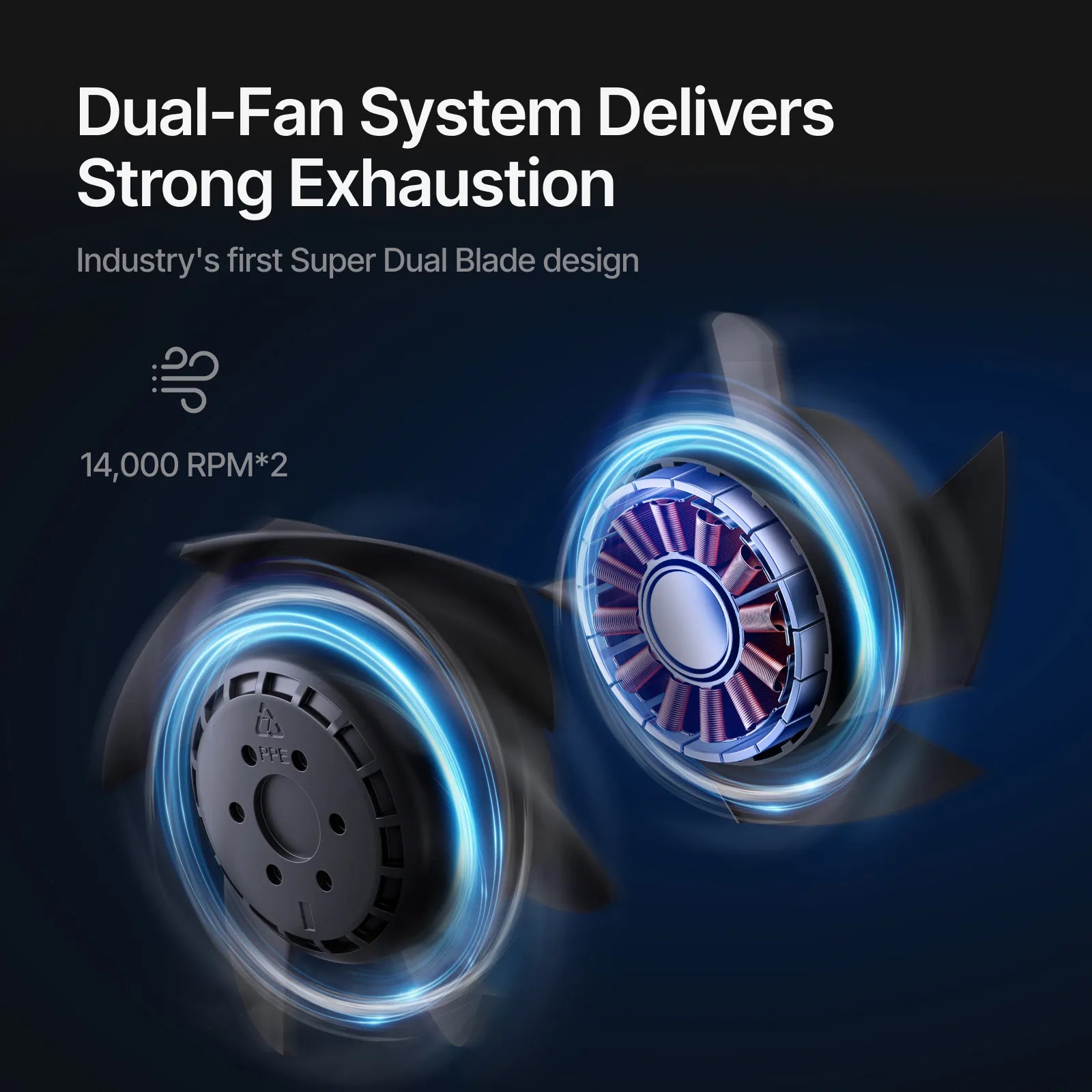

Two fans at 14,000 RPM each combined to deliver a powerful airflow, creating immense airflow for fast and efficient smoke exhaustion.
Two fans at 14,000 RPM each combined to deliver a powerful airflow, creating immense airflow for fast and efficient smoke exhaustion.

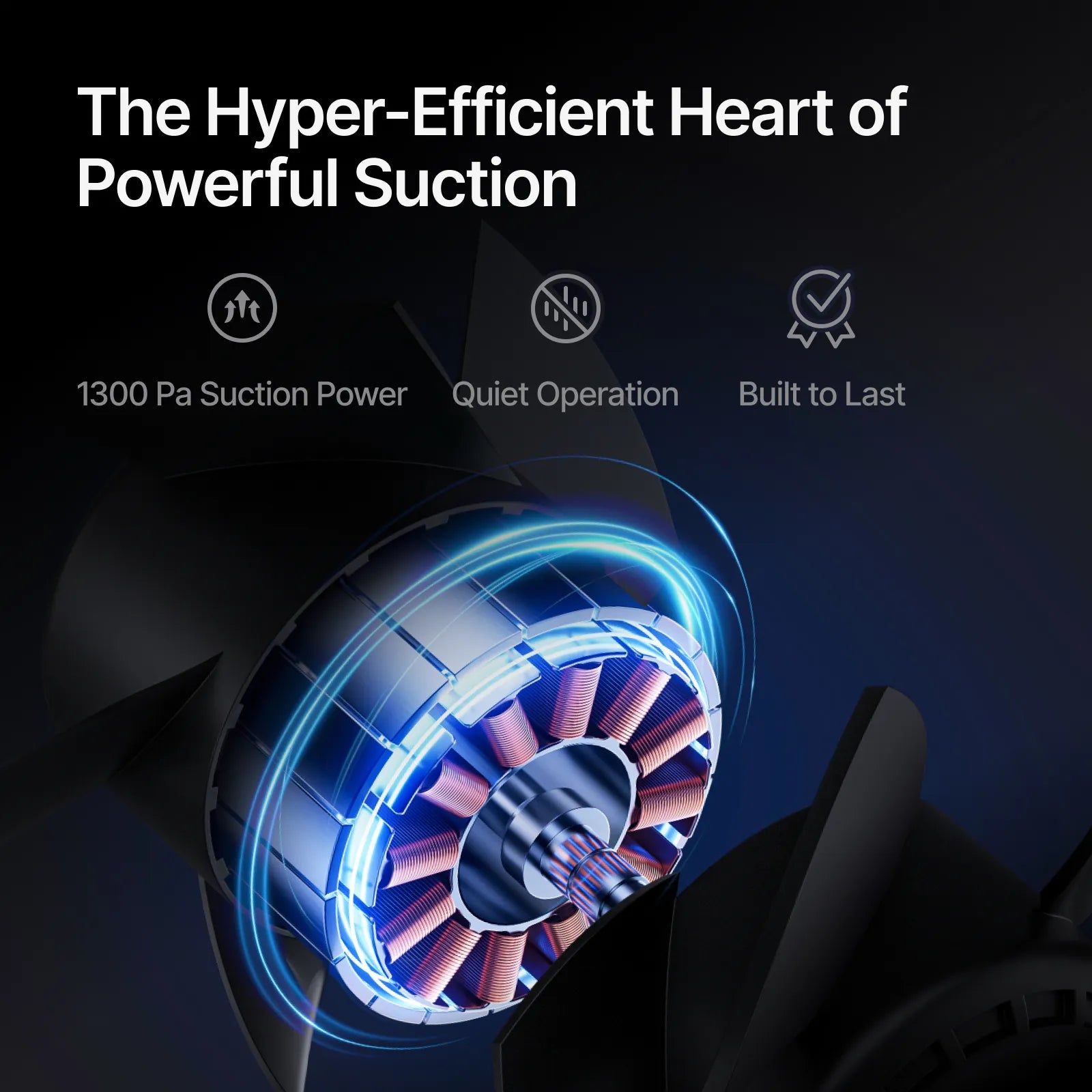

Big fans ≠ big suction, true cleanliness comes from powerful suction.
Big fans ≠ big suction, true cleanliness comes from powerful suction.
See How We Outperform！
See How We Outperform！

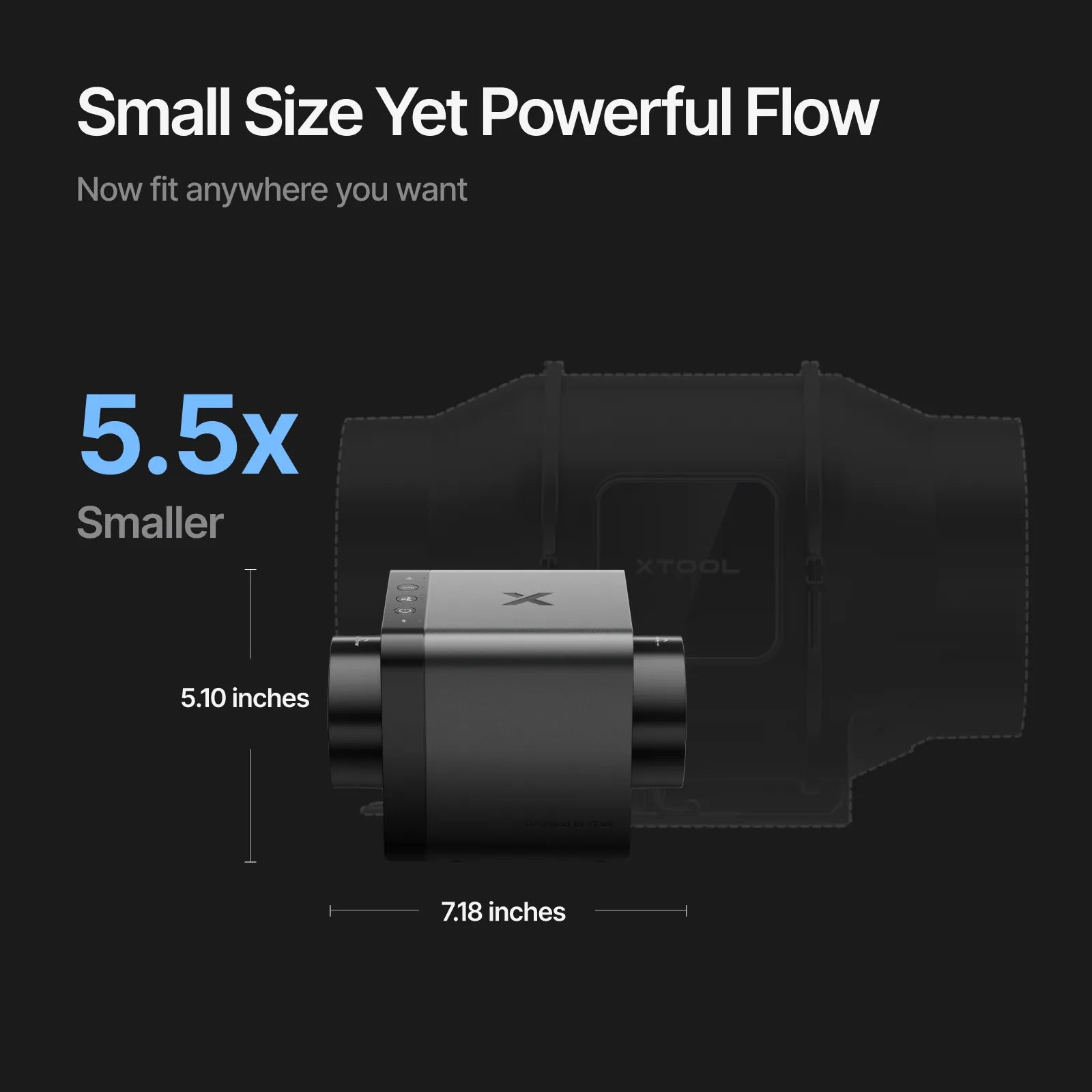

Smaller Than Ever,
Fits Anywhere You Need
Smaller Than Ever,
Fits Anywhere You Need
Smaller Than Ever,
Fits Anywhere You Need
Smaller Than Ever,
Fits Anywhere You Need
Beyond Convenience, Smarter Than You Think
Beyond Convenience, Smarter Than You Think
Beyond Convenience, Smarter Than You Think
Beyond Convenience, Smarter Than You Think

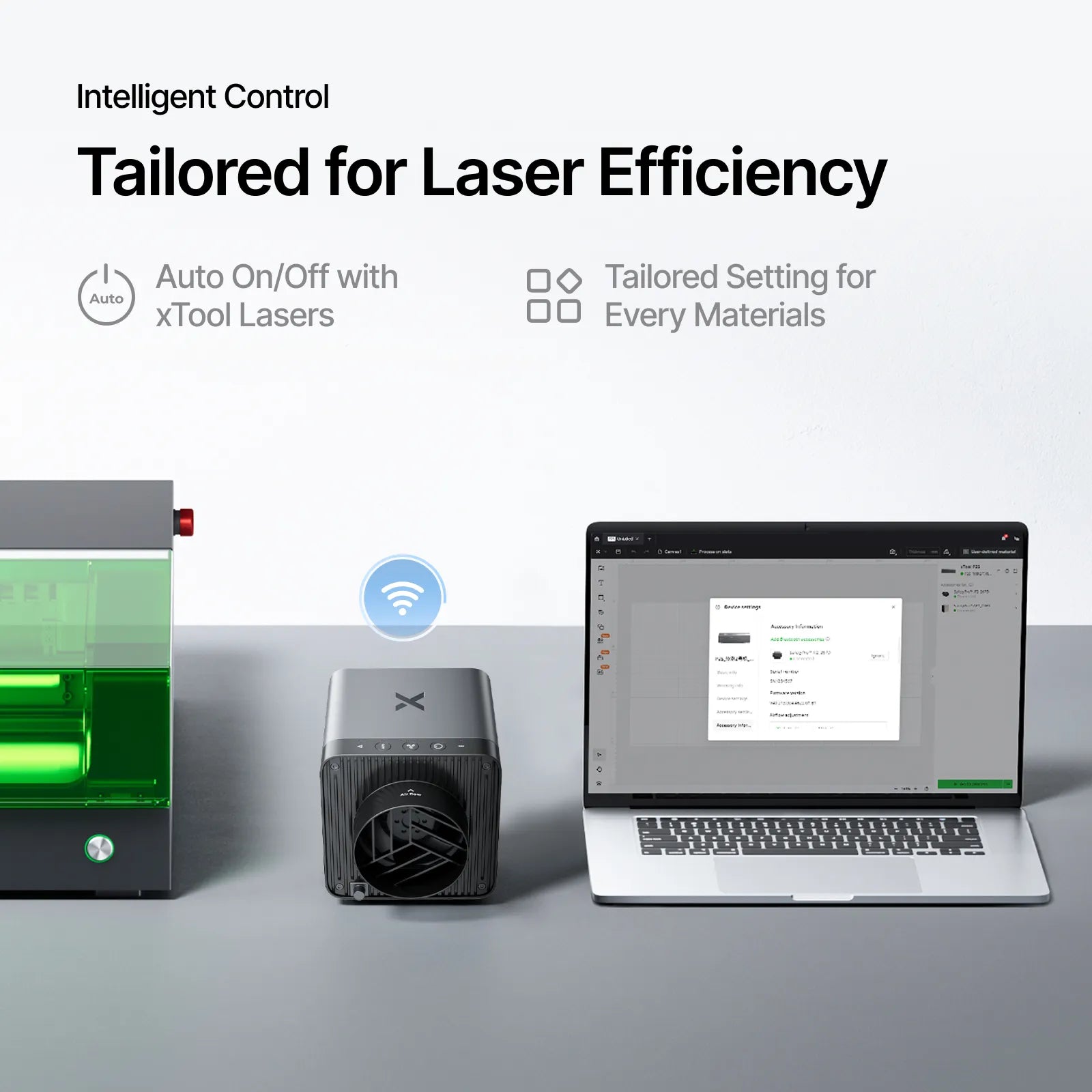

Automatically starts and stops with your laser, freeing your hands and simplifying operation. Also, customize the delay time for the fan to turn off after the laser stops.
Automatically starts and stops with your laser, freeing your hands and simplifying operation. Also, customize the delay time for the fan to turn off after the laser stops.
The inline fan automatically matches the optimal ventilation mode based on the material selected by the user.
The inline fan automatically matches the optimal ventilation mode based on the material selected by the user.
Thoughtful Design in Every Detail
Thoughtful Design in Every Detail
Easy Detachable for Simple Maintenance
The easily removable design allows for quick and effortless maintenance, ensuring hassle-free upkeep of the product.
Waterproof & Worry-Free, Simplified Cleaning
Washable & Worry-Free, Simplified CleaningThis ducted fan supports water rinse cleaning without any problems.
Thoughtful Design in Every Detail
Thoughtful Design in Every Detail
Easy Detachable for Simple Maintenance
The easily removable design allows for quick and effortless maintenance, ensuring hassle-free upkeep of the product.
Waterproof & Worry-Free, Simplified Cleaning
Washable & Worry-Free, Simplified CleaningThis ducted fan supports water rinse cleaning without any problems.
Cutting Freedom:
Cut Wherever You Please
The 2.3 meter long pp tube can be folded at will, making the workspace unrestricted by windows.
Quiet Operation
with Noise Cotton
Features noise-reducing cotton for a quieter, more peaceful operation. Enjoy superior performance with low dB.
Cutting Freedom:
Cut Wherever You Please
The 2.3 meter long pp tube can be folded at will, making the workspace unrestricted by windows.
Quiet Operation
with Noise Cotton
Features noise-reducing cotton for a quieter, more peaceful operation. Enjoy superior performance with low dB.

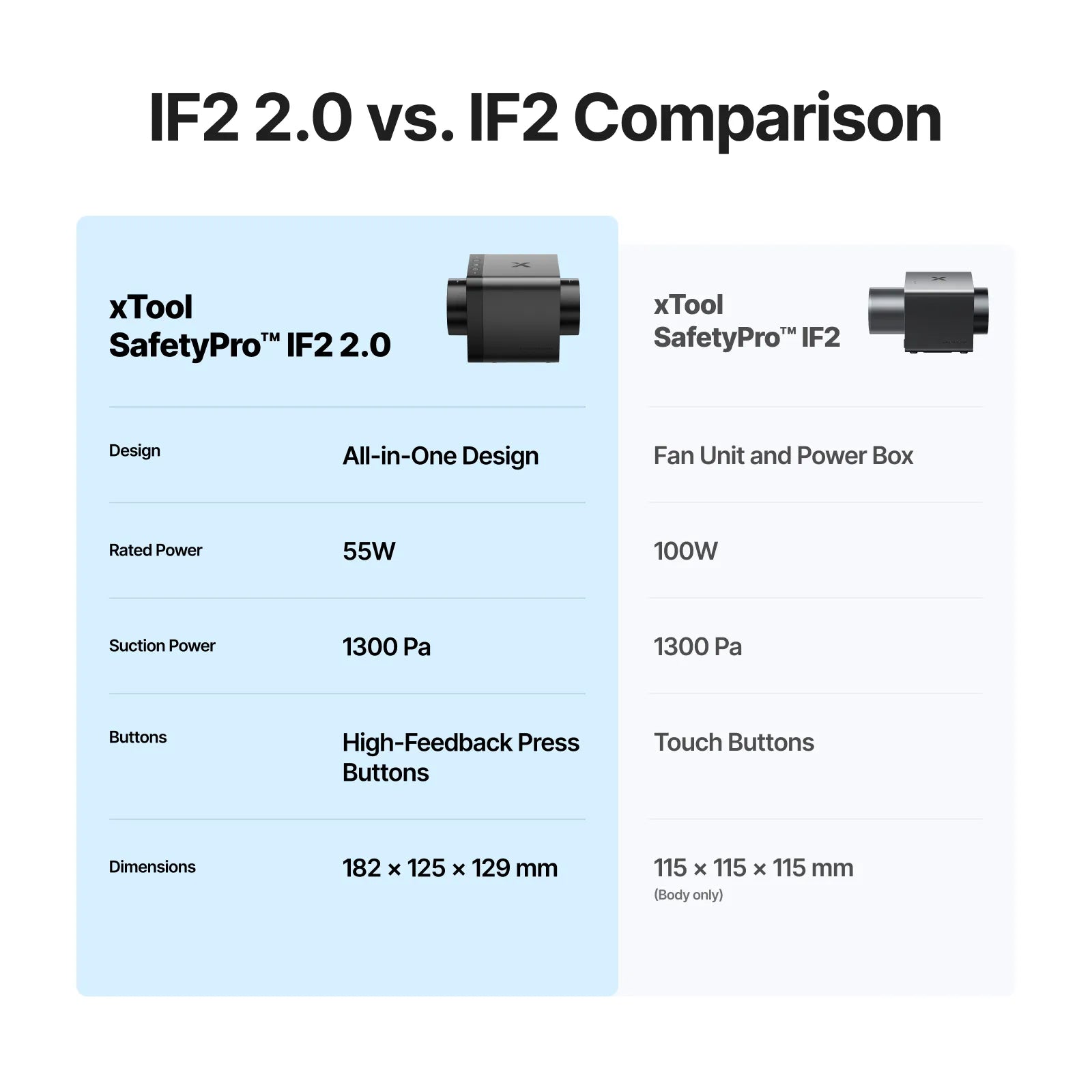

Specifications
Specifications
Adapted machine
P2S, P2, S1, M1 Ultra, F1 Ultra, D1, M1, F1P2S, P2, S1, F1 Ultra, D1
P2S,P2,S1,F1 Ultra,D1
Product Size
193.4*115*119mm
306*255*214mm
Product Weight
2.76kg
2.14kg
Duct Opening Size
3 Inch
3 Inch
Airflow
140 CFM
410 CFM
Suction Power
1300Pa
442Pa
Intelligent linkage
√
×
Knob Control
Touch button,four adjustable gears
Control,stepless gear adjustment
Rated Power
100w
40W
FAQ
Yes, Manual mode is compatible with all our lasers: P2S, P2, S1, M1 Ultra, F1 Ultra, D1, D1 Pro, M1, and F1；And auto-mode is only compatible with P2S, S1, M1 Ultra, and F1 Ultra.
Syncing the duct fan with the engraving machine requires a Bluetooth dongle for information transmission. At present, only the S1, F1 Ultra, M1 Ultra, and P2S meet this requirement.
The diameter size that the product can adapt to is 3 inches，as long as the size of the smoke exhaust pipe of the laser machine meets the requirements.
The IF2 boasts a CFM of 140 when unloaded, with a laser exhaust port and fan both measuring 3 inches in diameter, ensuring a perfect fit for your laser machine. When connected, the CFM is 122.
In contrast, traditional 6-inch fans have an unloaded CFM of 410, but when connected to the laser machine, the CFM drops to 65, resulting in a significant decrease in suction and airflow.
In tests conducted under the same conditions, the suction power of the new fan is three times that of the traditional 6-inch fan, while also demonstrating superior airflow performance.
Ensure all connection points are securely fastened to prevent air leaks.
Straighten the exhaust duct as much as possible and avoid using excessively long ducts to minimize the airflow loss caused by inside wrinkles.
Regularly clean the Duct Fan according to the instructions in the user manual.
*Note: It's not recommended to turn on the Duct Fan and the built-in exhaust fan of xTool P2/S1/M1 together.
The Duct Fan is ideal for venting smoke outside. If you don't have access to venting outdoors, then a Smoke Purifier will be recommended. However, it's not recommended to use the Inline Duct Fan and Smoke Purifier together.
Yes, it is waterproof. The dust and water resistance rating is IP55, meaning water flow during cleaning will not affect the fan.
Yes. Just make sure to connect the AP2 purifier first and then the IF2, or it might affect performance.However, it’s not necessary to use them together. Each can work perfectly on its own, so you can choose based on what suits your needs best.
